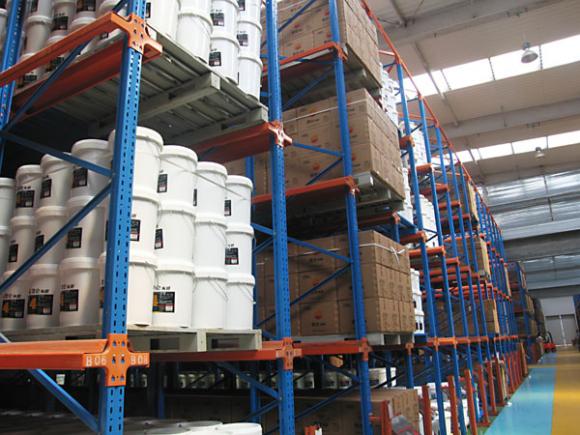

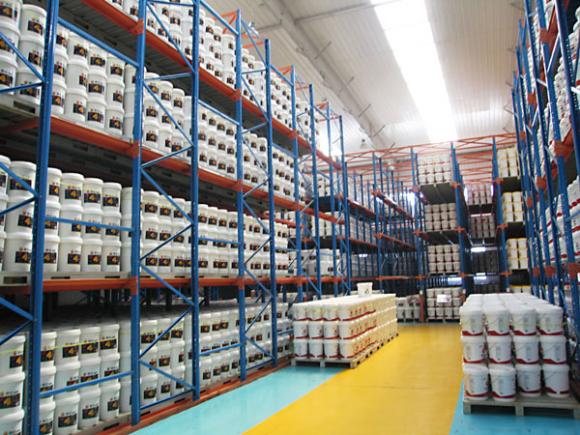

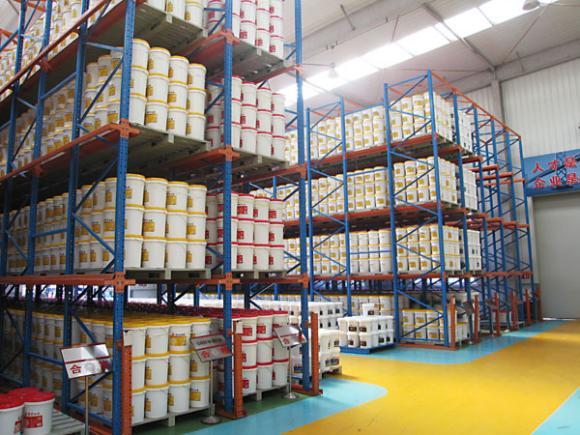

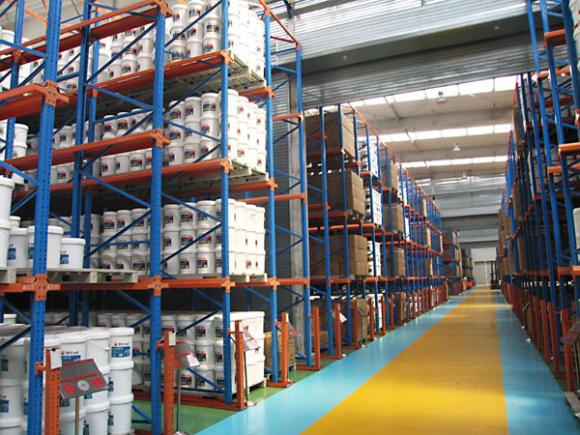

Into racking system (also called "window type shelf, existent shelves), is one of the high density storage shelves system, it USES the tray to access mode, suitable for few varieties and large quantities of the storage of the goods. The system is composed of continuous shelves, the middle channel, the access to the goods is to operate by forklift into the rack. According to the shelf arrangement can be divided into single into type and double into type. Is the most medial forklift from shelves position began to deposit to the lateral position. Its configuration mode can be two groups into type rack placed back to back against the wall or a single group, a forklift in and out of the roadway, using the same storage density is very good, but the access performance is restricted, cannot do the management of first in first out. Due to the forklift in the shelf, so the driver must be very careful. Into the type of shelves in depth in 3-5 columns, tall into four layer management, most easily suitable for less sample more quantity of products.
Into the racking system characteristics
1, and is suitable for the warehouse cost is more expensive per unit area of the warehouse, such as cold storage and food, tobacco industry;
2, is suitable for the warehouse storage efficiency requirement is not too high;
3, compared with the ordinary shelves, can improve the utilization rate of the ground around 60%;
4, only supporting forward heavy forklift forklift or balanced can be used.
Into the racking system
Into racking system main parts by the column, the top beam, back beam, roof, bracket, bracket beam, etc.
Uprights: there are two columns and cross brace, brace the special bolt connection and into. Panghsang column section there are four specifications: can satisfy different load-bearing requirements, post on every 50 mm (75 mm) or prefabricated hole type water droplets (diamond) to implement with beam splice, so the beam can be 50 mm (or 75 mm) as the unit and adjust the height of the shelves.
Bracket: integral stamping forming components with inertia is apart from the big, strong bearing capacity, the characteristics of beautiful appearance.
Bracket shelf beam: special design of cold rolling forming, can according to the design scheme of production of arbitrary length, and no joint, beautiful and uniform loading.
During and after the bar, because the whole into beams in storage system is less, so we design the beam, after its role is to strengthen the stability of the entire shelf system, after the beam by two column and beam bar welded together. In order to ensure the beam in the shedding of abnormal under the action of external force, the special design of beam and column connection anti-separtion insurance marketing, in order to ensure the safety of use.
Panghsang company into type rack (through type shelf, tong existent shelves) has become a domestic professional logistics products, has been many of the world top 500 enterprises and domestic large enterprises such as general motors, Siemens, bausch, maersk, yili, mengniu, unity, etc widely used.
