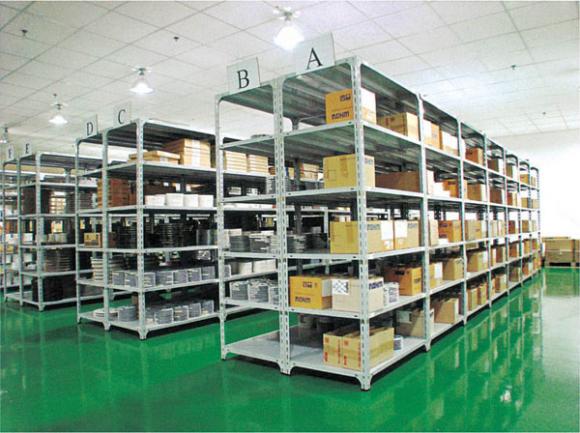

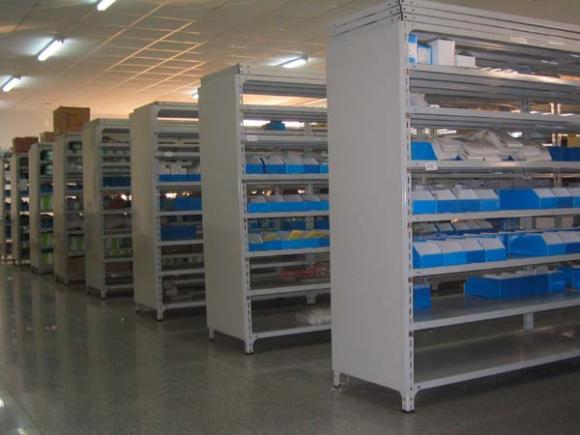

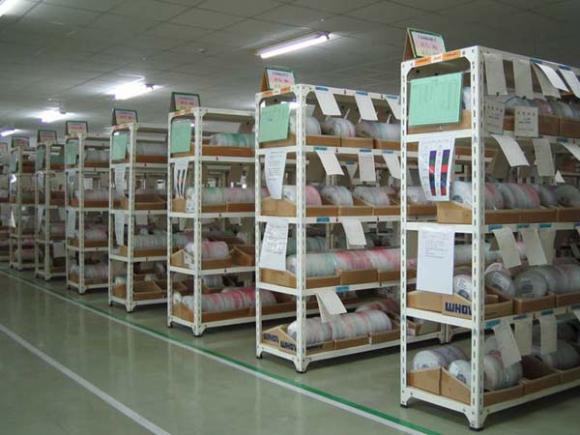

Light shelves are widely used in all walks of life of small objects and the storage of spare parts, with beautiful shape, can be arbitrary combination, wide range of USES. Electronic shelf industry using the shelves of more, because of goods is lighter, also known as electronic shelf. Using universal Angle steel as the pillar of light shelves, according to the connection and is assembled with infixing pattern, install and disassemble because it is the floor of each layer for 50 mm pitch adjusted, and meet the requirements of different customers on the use of the space. Lightweight shelves steel layer board optimization of Japanese standard (SPCC) cold rolling steel plate, bending, four direction and supplemented by reinforcement. Surface treatment for electrostatic powder, the processing make shelf layer board more wear-resisting, durable.
Light shelves product features:
Light shelf: it is mainly composed of columns, steel layer board, bearing capacity is usually 50 kg, 200 kg/layer, suitable for artificial access lighter goods, can be stored with plastic turnover box more varieties of small products, widely used in electronic industry and small parts warehouse, can be realized by changing the coating powder or laid special rubber anti-static function, low cost, safe and reliable, simple assembly and disassembly of characters. Such as increased at the underlying universal wheel mechanism can even realize transfer function.

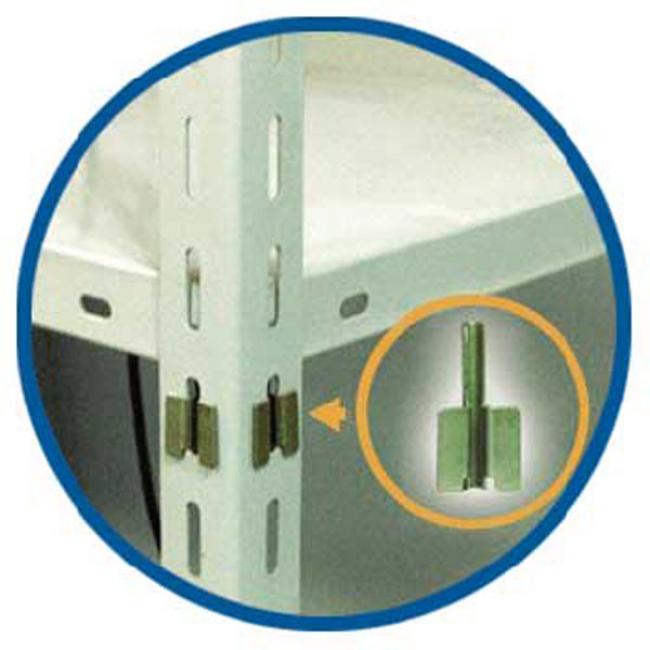

Shelves of the top and bottom layers of plate and the column with double Angle code and screw connection, make shelf stable, middle layer board with moulded special bolt connection, easy installation and removal. Steel layer board for up to 50 mm pitch up and down to adjust height, content many kinds demand. Steel layer board USES the Japanese standard (SPCC) cold plate bending forming, according to the required size and supplemented by reinforcement forms, used in steel layer board molding process professional welding equipment, make layer board in the beautiful and improve the machining accuracy than manual operation.
